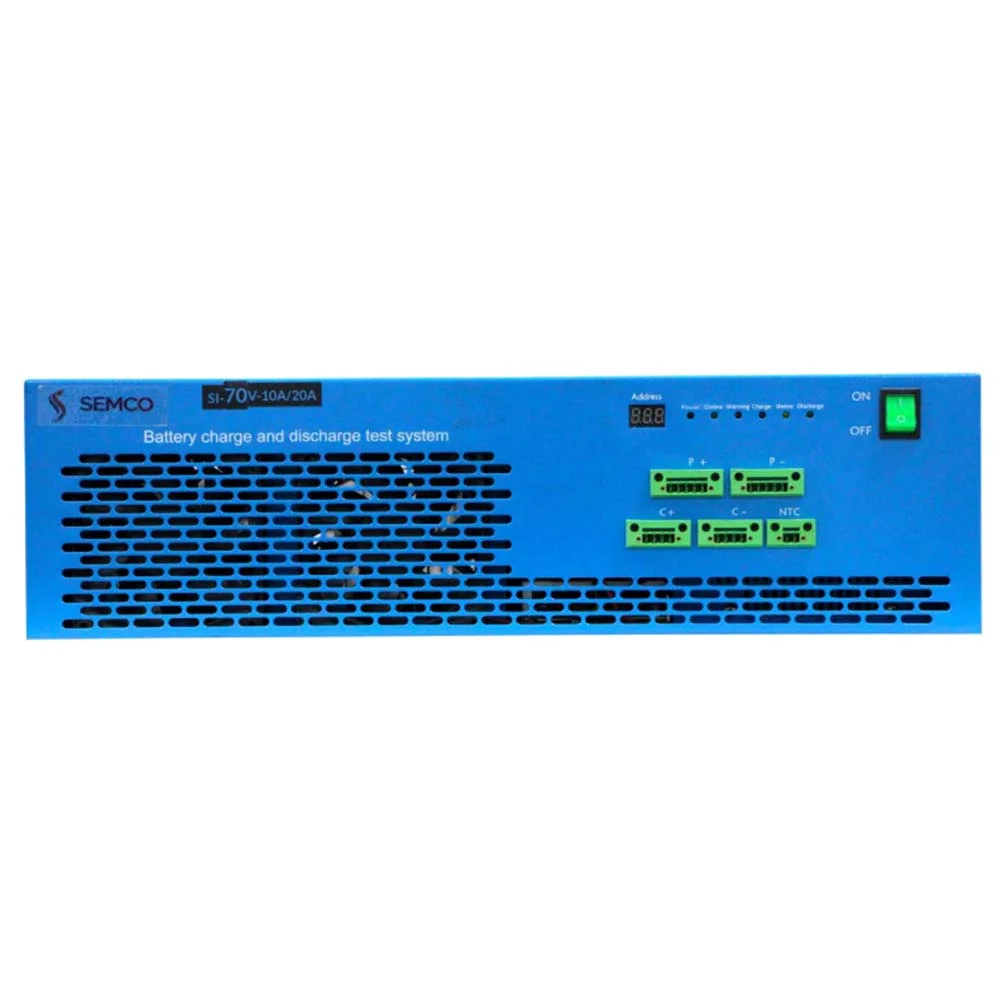

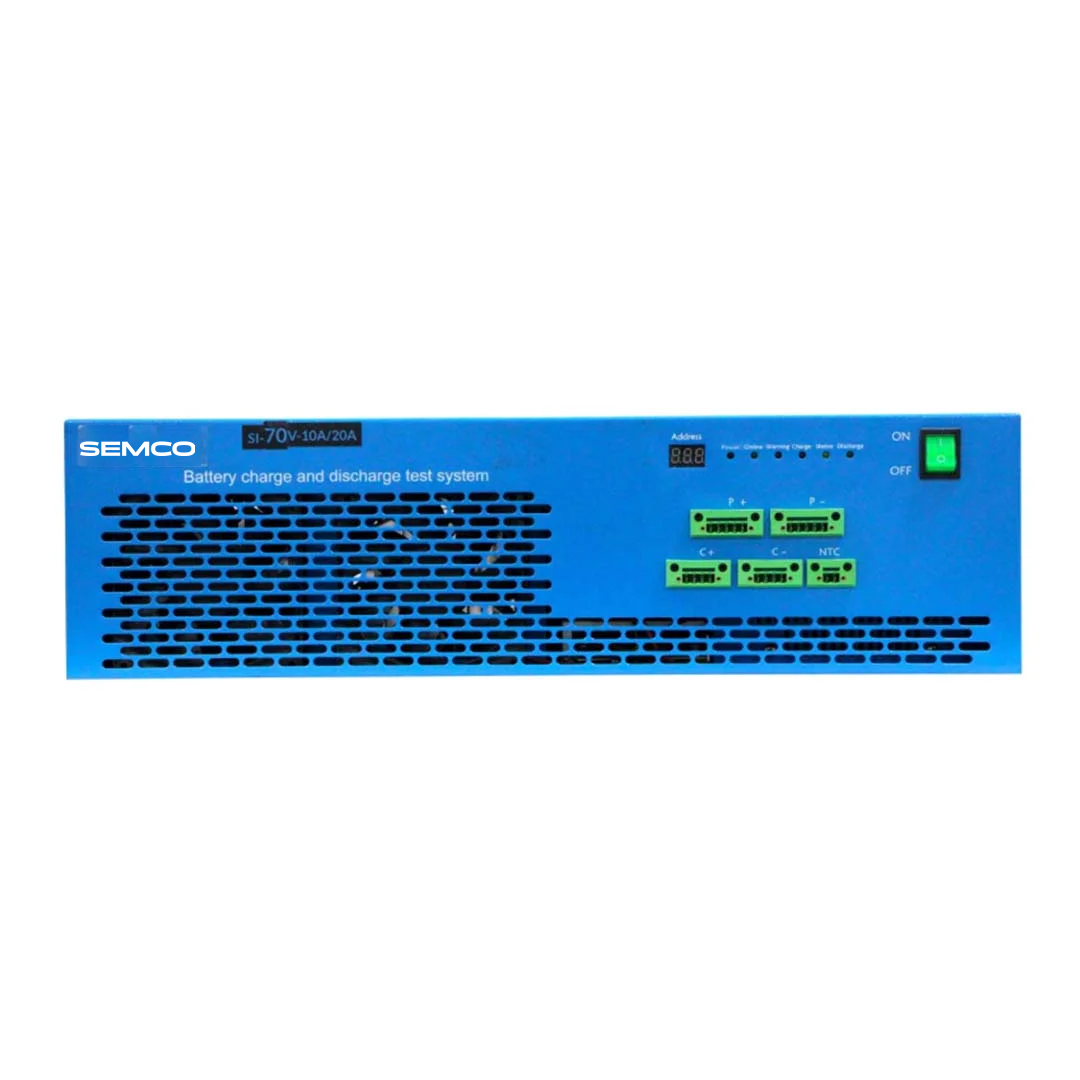

Semco SI BCDS 70V (10/20A) (1.4kW) 1CH- Standalone

Semco SI BCDS 70V (10/20A) (1.4kW) 1CH- Standalone

Input power		AC 220V ±10% / 50Hz
Voltage	Measuring range	9~70V
Voltage	Precision	± (0.2% of reading + 0.2% of range)
Current	Charging range	50~10000mA
	Charging accuracy	± (0.2% of reading + 0.2% of range)
	Discharge range	50~20000mA
	Precision	± (0.2% of reading + 0.2% of range)

Categories: Battery Charging & Discharging Cabinets, For Prismatic Cell

Description
Reviews (0)

Description

Recharge	Constant voltage cut-off current	50mA minimum
Capacity	Precision	±1‰
Power	Discharge power	≤1400W
Time	Inspection time	Receive real time <2S
Time	Timing range	0~999 hours/step
Data logging interval		≥5S
Mid-range version		1.1 series
Recharge	Charging mode	Constant current and constant voltage charging
Recharge	Cut-off condition	Voltage, current, relative time, overcharge protection
Discharge	Discharge mode	Constant current discharge
Discharge	Cut-off condition	Voltage, relative time, over-discharge protection
Loop	Cycle measurement range	1~999 times
Loop	Number of steps in a single cycle	100
Voltage and current detection sampling		Four-wire sampling
Database		Use SQL database to manage test data
Host computer communication method		Based on TCP/IP protocol, serial port
Data output method		EXCEL, TXT, chart
Communication interface		Network port
Number of channels per cabinet		1Channel, Line 1Column
